+ gas 1-250-315
- Storage: 315-litres
- Input: 250mJ
- Output: 55kW
- Peak hour delivery: 1260-litres @ 65 Deg C
- Continuous recovery: 945-litres per hour @ 50 Deg C rise
+ gas 2-250-315
- Storage: 315litres
- Input: 500mJ
- Output: 110kW
- Peak hour delivery: 2,205litres @ 65 Deg C
- Continuous recovery: 1,890litres per hour @ 50 Deg C rise
+ gas 3-250-650
- Storage: 650-litres
- Input: 750mJ
- Output: 165kW
- Peak hour delivery: 3,485-litres @ 65 Deg C
- Continuous recovery: 2,835-litres per hour @ 50 Deg C rise
+ gas 3-250-800
- Storage: 800-litres
- Input: 750mJ
- Output: 165kW
- Peak hour delivery: 3,635-litres @ 65 Deg C
- Continuous recovery: 2,835-litres per hour @ 50 Deg C rise
G22P2060
- One lockable, powder coated, galvanised steel control cabinet
- Individual pump off/manual/auto selection
- 12-hour timed pump alternation,
- Pump run and fault lights
- BMS fault outputs
- Fault indication strobe
- Automatic pump change-over on fault
- 2 x UPS 20-60N Grundfos Stainless Steel Circulating Pumps
- 2 x Non Return Valves
- 4 x Grundfos Service unions
- Prewired with a 10 amp 3 pin plug
- Installed on a Stainless Steel backing plate
- 20mm Brass connections
- Operation and Maintenance Manual with QR code for onsite download
- 12 Month Warranty
Electrical requirement: 10 Amp GPO
G22P3280
- One lockable, powder coated, galvanised steel control cabinet
- Individual pump off/manual/auto selection
- 12-hour timed pump alternation,
- Pump run and fault lights
- BMS fault outputs
- Fault indication strobe
- Automatic pump change-over on fault
- 2 x UPS 32-80N Grundfos Stainless Steel Circulating Pumps
- 2 x Non Return Valves
- 4 x Grundfos Service unions
- Prewired with a 10 amp 3 pin plug
- Installed on a Stainless Steel backing plate
- 20mm Brass connections
- Operation and Maintenance Manual with QR code for onsite download
- 12 Month Warranty
Electrical requirement: 10 Amp GPO

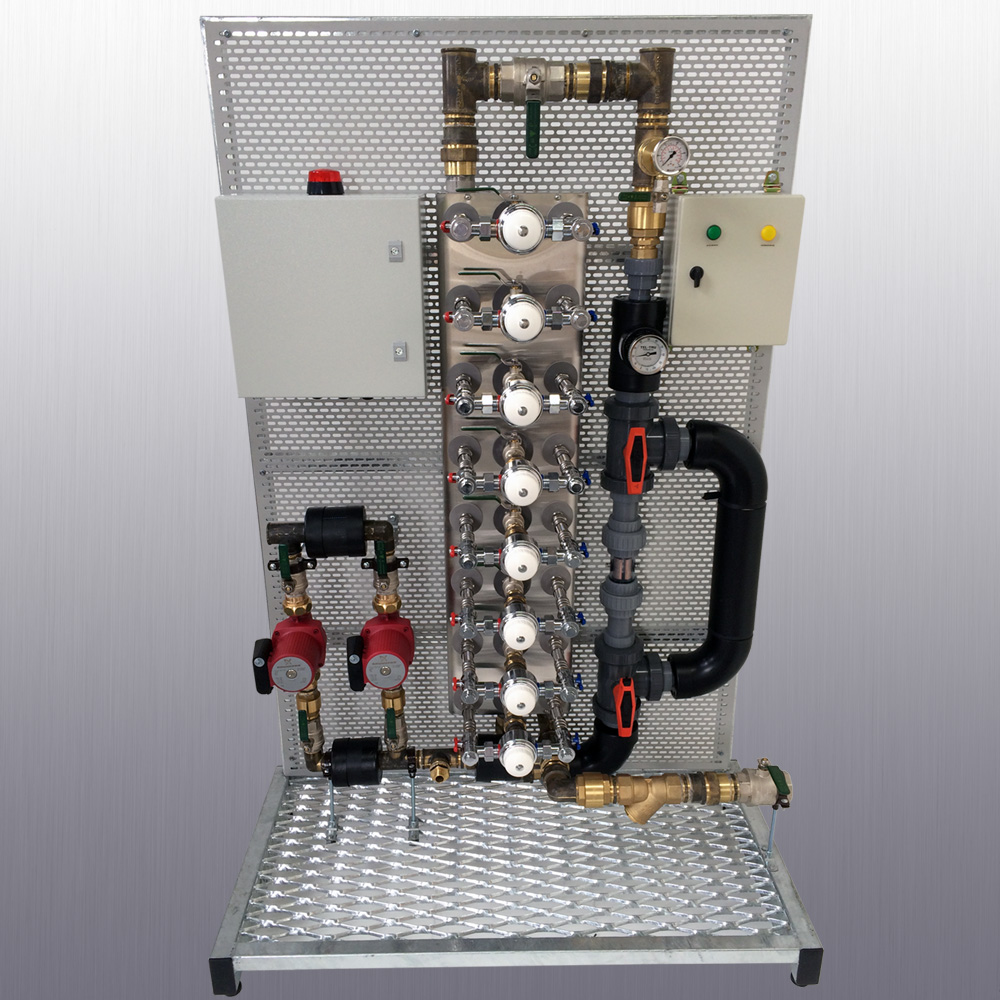

Aeris
- Centralised Thermostatic Mixing Station
- Copper Silver Ionisation Module
- Integrated Dual ring Main Pump Set
- Hot Dipped Galvanised Skid Frame
- Fully Adjustable Feet
- Temperature Gauge
- Pressure Gauge
- Test Point
